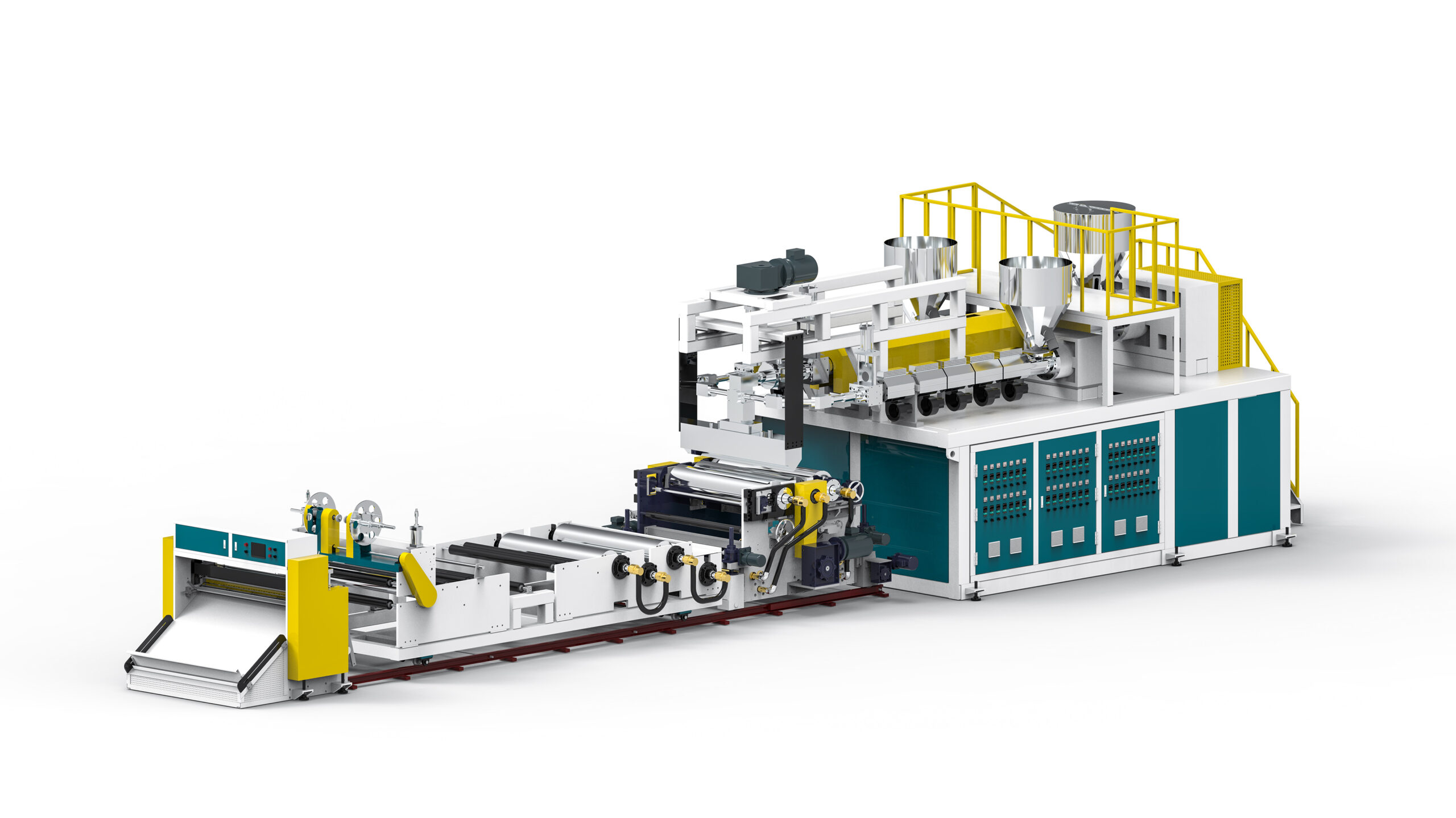

PP/PE Foamed Sheet Line
1. Interlocking safety design ensures the safety of operators
2. Equipped with three screws and an optimized combination of the aspect ratio
3. Speed frequency conversion control and touchscreen control
4. Equipped with three in one water tank to save energy and reduce consumption
5. The cutting table adopts a servo motor and swing bar structure to ensure accuracy and speed
Description
The PP/PE three-layer foamed extrusion line applies the internationally advanced cross-linked closed-cell foaming technology and uses PP, PE, and related auxiliary agents as raw materials to produce and process PP/PE foamed sheets of various colors, thicknesses, and lines. It is the preferred extrusion line for making various high-grade PP/PE foamed sheets
Density table of PP and PE foam board:
| Thickness mm | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.8 | 1.9 | 2.0 | 2.1 | 2.2 | 2.3 | 2.4 | 2.5-2.8 | 2.9 | 3.0 |
| Density g/cm3 | 0.78 | 0.76 | 0.75 | 0.74 | 0.72 | 0.7 | 0.68 | 0.66 | 0.65 | 0.64 | 0.63 | 0.62 | 0.6 | 0.63 | 0.65 |
Specifications
| Model | 5EFPX70/120/70-1300 | 5EFPX75/125/75-1500 | 5EFPX80/130/80-2000 |
| Scews L/D | 30:1 | 30:1 | 30:1 |
| Sheet width | 1100mm | 1300mm | 1800mm |
| Sheet thickness | 0.8-4.0mm | 0.8-4.0mm | 0.8-4.0mm |
| Max extruding capacity | 250 kg/h | 300 kg/h | 350 kg/h |
| Distribution power | 150 kw | 165 kw | 200 kw |
| Dimension L*W*H | 9950x1510x2200mm | 9950x1710x2200 mm | 9950x1710x2200 mm |
| Machine Weight | 10.5 T | 12.6 T | 12.6 T |
