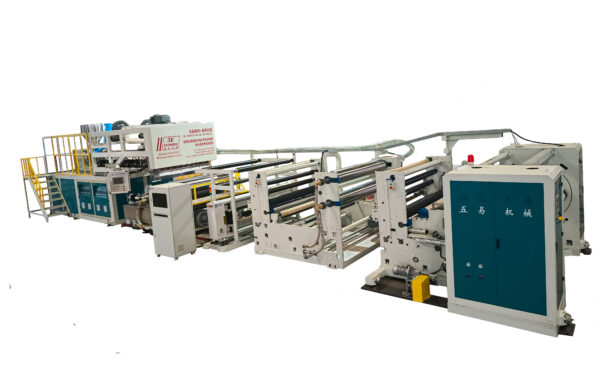

PP Cast Film Line
1. The screw is designed with a special mixing function and high plasticizing capacity, which is matched with a European static mixer to ensure good plasticization, good mixing effect, and high output
2. Online auto film-thickness measurement and automatic die-head adjusting, imported Europe cooling forming roll is optional, and the special spiral runner design ensures good film cooling and shaping effect at high speed
Description
Machine Application:
The PP cast film line is mainly used to produce single-layer PP cast film
Machine Features:
1. Equipped with a positive pressure device to ensure the stability of film melting.
2. Film scraps are directly recycled online, greatly reducing production costs.
3. Fully automatic central rolling, equipped with a servo wheel controller, automatically changes and cut off the roll, and the operation is very simple
Specifications
| Model | 5EPP120-1700 | 5EPP 130 -2000 | 5EPP135 -2500 | 5EPP145-3000 | 5EPP150-3500 |
| Film width | 1200mm | 1500mm | 2000mm | 2500mm | 3000mm |
| Positive pressure film thickness | 0.08-0.20mm | 0.08-0.20mm | 0.08-0.20mm | 0.08-0.20mm | 0.08-0.20mm |
| Max extruding capacity | 200-250 kg/h | 300-350 kg/h | 400-450 kg/h | 500-550 kg/h | 600-650 kg/h |
