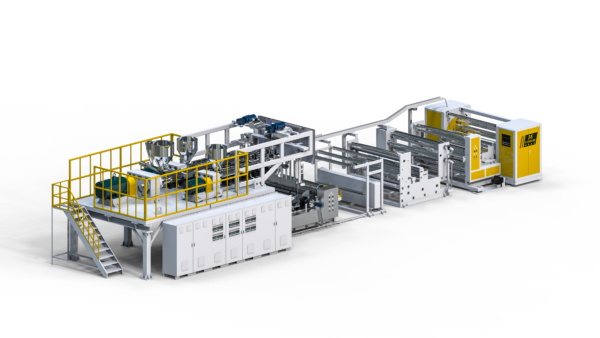

CPP Cast Film Line
▲The screw is designed with a special mixing function and high plasticizing capacity and is matched with a European static mixer to ensure good plasticization, good mixing effect, and high output
▲Online auto film-thickness measurement and automatic die-head adjusting, imported Europe cooling forming roll is optional, the special spiral runner design ensures good film cooling and shaping effect at high speed
Description
The CPP cast film line is mainly used to produce three-layer and five-layer co-extruded CPP, EVA, and high-barrier films containing PA and EVOH.
Features of CPP Cast Film Line
1. Equipped with positive pressure device and negative pressure device to ensure the stability of film melting
2. Direct online recovery of film scraps greatly reduces production costs
3. Fully automatic central rolling, equipped with imported tension controller and automatic roll changing and cutting, with an easy operation
Film Application: CPP film is suitable for clothing, knitwear, flower packaging bags, document and photo album film, and food packaging
Potential uses: food packaging, candy packaging (kink conjunctiva), drug packaging (infusion bag), replacing Pvc, synthetic paper, adhesive tape, business card holder, and standing bag composite materials in photo albums, folders, and documents
Specifications
| Model | 5ECPP130-1700 | 5ECPP130/80-2000 | 5ECPP100/135/100-2500 | 5ECPP110/140/110-3500 | 5ECPP120/150/120-4500 |
| Finished-film width | 1200mm | 1500mm | 2000mm | 3000mm | 4000mm |
| Negative pressure finished-film thickness | 0.02-0.08 mm | 0.02-0.08mm | 0.02-0.08 mm | 0.02-0.08mm | 0.02-0.08mm |
| Positive pressure finished-film thickness | 0.08-0.15mm | 0.08-0.15mm | 0.08-0.15mm | 0.08-0.15mm | 0.08-0.15mm |
| Max extruding capcacity | 250-350 kg/h | 400-450 kg/h | 400-500 kg/h | 800-900 kg/h | 1000-1200 kg/h |
